Rotary Cutting Machine

Rotary cutting machine is used to cut wood logs into veneer sheet, and it can process various length and diameter of wood logs with capacity 1.5 cubic per hour. The output wood veneer is used for the production of disposable wooden ice cream sticks, coffe

Model：BXQJ

Power：22.7KW

Voltage：380V, 50HZ, three phase

Net weight：2000kg

Veneer width max> 520mm

Send Email

Chat Now

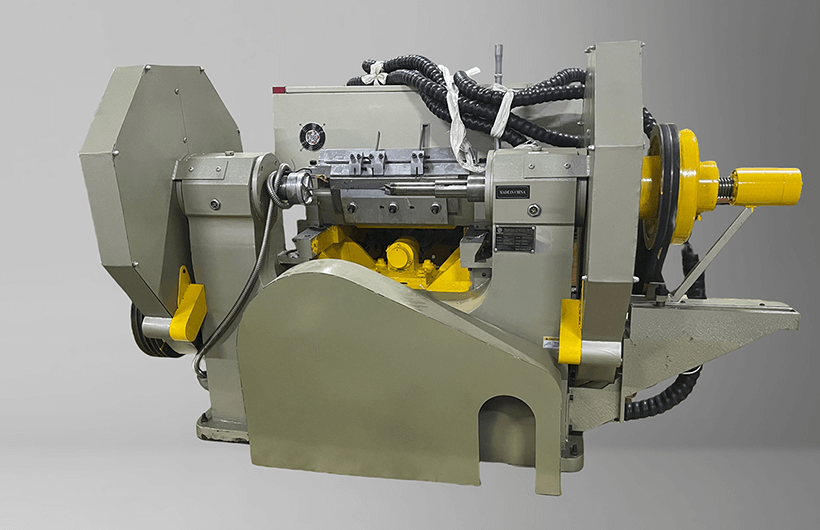

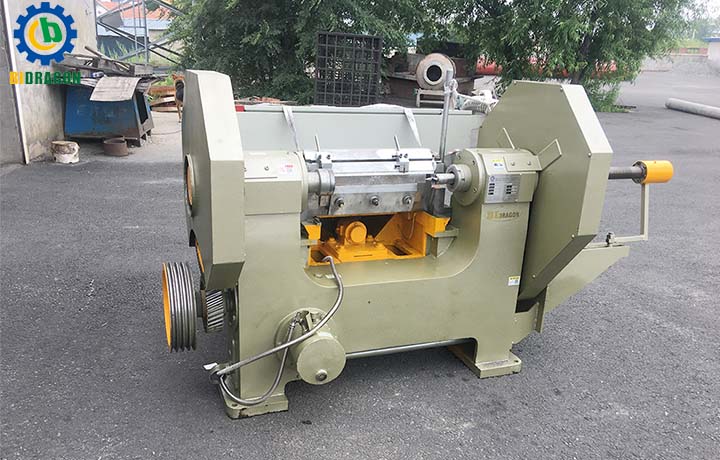

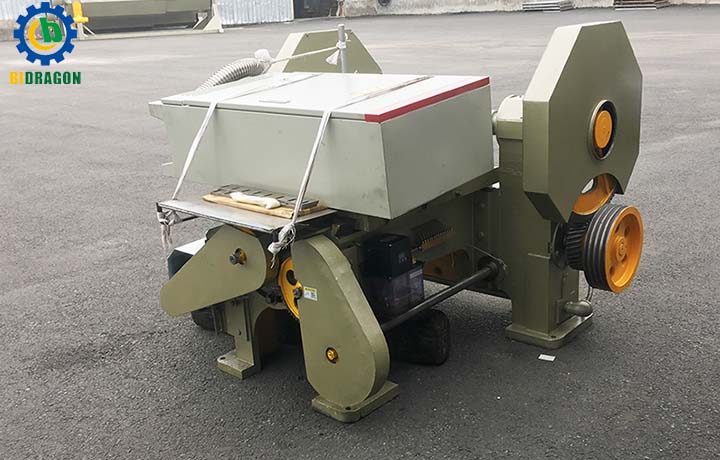

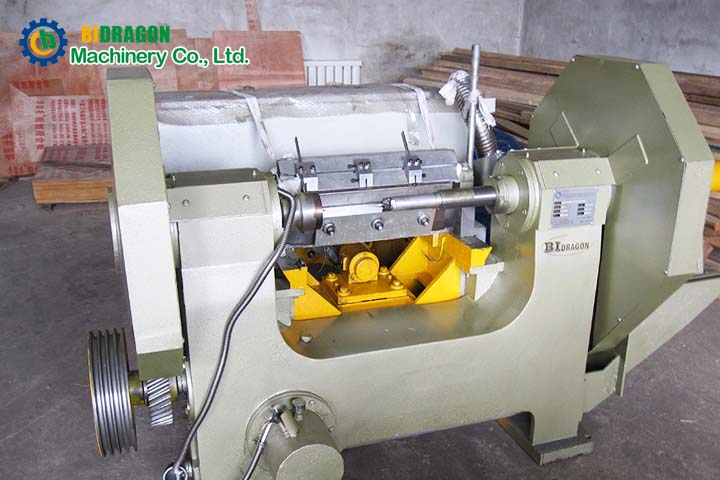

Rotary Cutting Machine

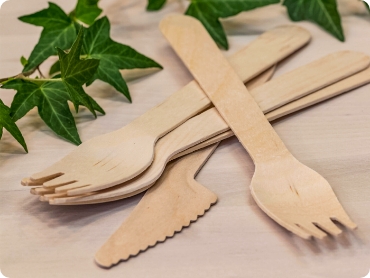

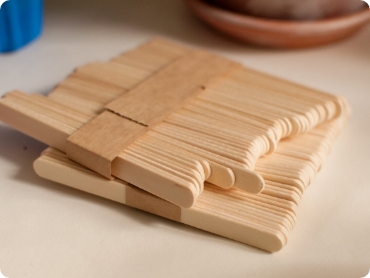

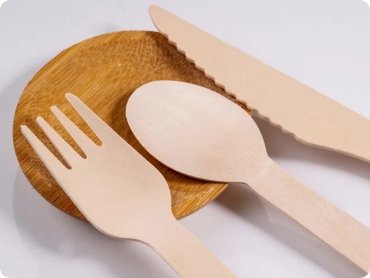

Our rotary cutting machine uses cutters to peel the wood into veneers of set thickness. The maximum length of wood logs can be 520mm, and maximum diameter of the wood logs that can be processed is 800mm. Machine equips a programmable logic controller and a servo motor to control the thickness of the peeled veneer to achieve human-machine interaction. The thickness of the veneer is adjustable from 0.5 to 6.5mm. It can process 1.5 to 1.7 cubic meters of wood per hour, with large output, excellent system performance, high reliability, and high degree of automation. It is the main machine which is widely used in the production of disposable ice cream sticks, coffee sticks, tongue depressors, ice spoons, and wooden cutlery,etc.

Get In Touch With Us

Rotary Cutting Machine Parameter

Model	BXQJ-CNC
Cut thickness	0.3-6.5mm
Wood diameter	<800mm
Size	250024001300mm
Power	22.7KW
Weight	2000kg

Production Line Flow Show

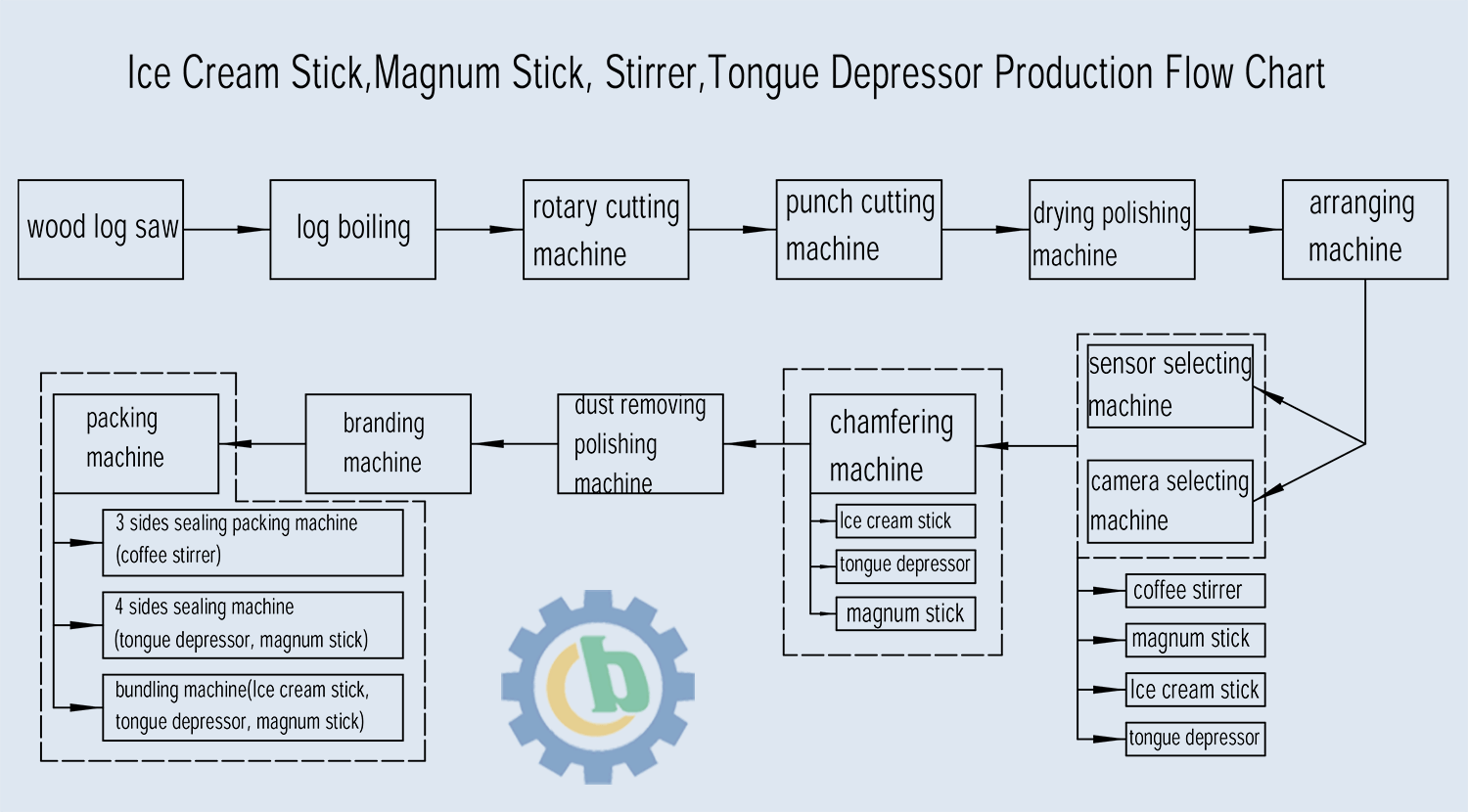

Wooden Ice Cream Stick and Tongue Depressor Making Machine Flow Chart: Wood boiling→Peel the wood logs→Rotary cutting machine→Punch cutting machine→Drying and Polishing machine→Arranging machine→Selecting machine→Chamfering machine→Logo stamping machine→Bundling machine

Wooden Coffee Stirrer Stick Making Machine Line Flow Chart: Wood boiling→Peel the wood logs→Rotary cutting machine→Punch cutting machine→Drying and Polishing machine→Arranging machine→Selecting machine→Packing machine

Wooden Ice Cream Stick Making Machine Line

What Are Our Strengths

Customized Solutions for Your Unique Needs

We take pride in our ability to provide personalized solutions tailored to your specific requirements and factory layout. Our team of experienced engineers works closely with you to understand your production goals, space constraints, and operational needs.

Overseas Installation and Commissioning

Our commitment to your success doesn't end with the sale. We offer comprehensive overseas installation and commissioning services to ensure that your machine is up and running smoothly as quickly as possible. We also provide on-site training for your operators.

30 Years of Production and Export Experience

We have exported our machines to more than 40 countries and regions around the world, and our products have been widely praised for their quality, reliability, and performance.

Advanced Technology

We are committed to staying at the forefront of technological innovation in the disposable wooden sticks and cutlery production industry. Our R&D team is constantly developing new technologies and improving our existing products to meet the changing needs of our customers.

Quick Question And Answer

What wood is for rotary cutting machine?

Rotary cutting machines typically use wood with uniform texture, moderate hardness, and good ductility. Common choices include: Birch: Smooth texture, less prone to cracking, ideal for thin veneer. Poplar: Soft, easy to process, suitable for general-purpose veneer. Oak: Harder, used for durable veneer in furniture or flooring. Pine: Soft and cost-effective, though resin content requires attention. Maple: Fine-grained, suitable for high-quality decorative veneer. Wood must be properly dried to avoid warping, and species selection depends on veneer thickness, application, and machine specifications.

What is capacity of the rotary cutting machine?

The rotary cutting machine capacity is 100,000pcs/h, for cutting wood log into wood veneer, and the woode veneer is for making ice cream stick, coffee stirrer, medical wooden spatulas, woode spoon and fork, etc., wood products

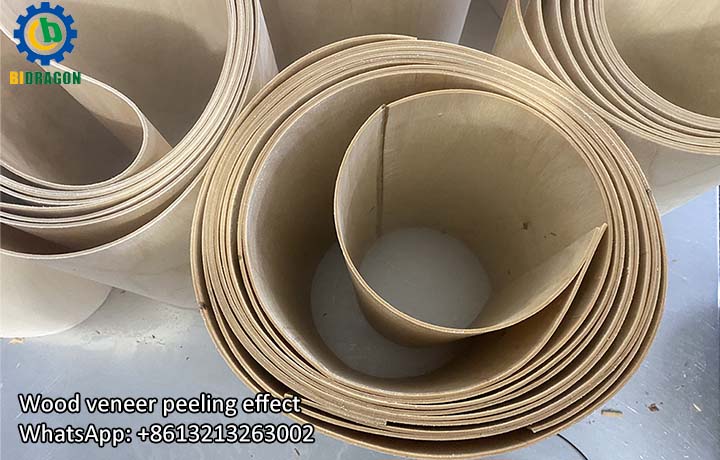

What is the cutting thickness of the wood veneer ?

The finished wood vener thickness from rotary cutting machine is 0.3-6.5mm, has wide application for making various wood products.
