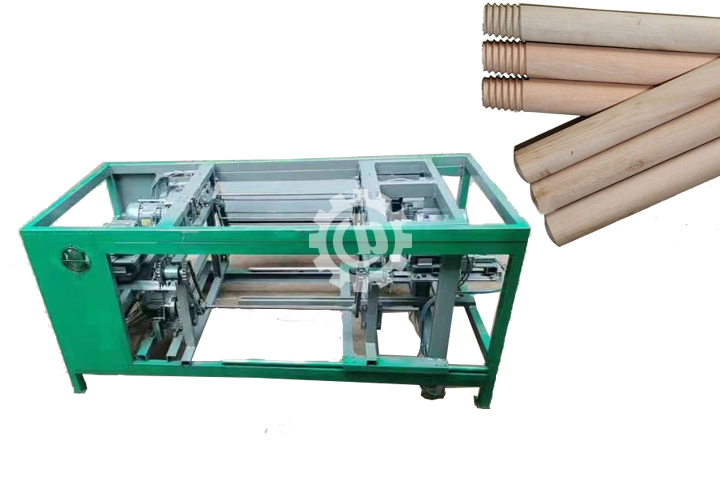

Wood Round Stick Broom Handle Threading Machine

This Wood Broom Threading Machine used for making the round shape and thread on the different ends of the round stick.

Introduction

This Wood Broom Threading Machine used for making the round shape and thread on the different ends of the round stick.

Wood broom stick threading machine is used to thread wooden broom round sticks. It can chamfer the round broom stick one end and thread the other end meanwhile

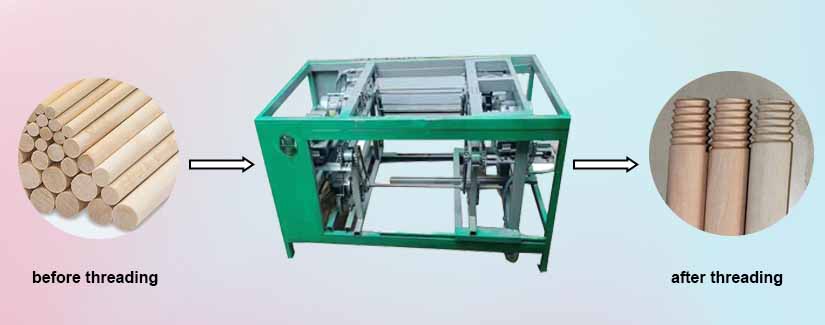

The machine will automatically feed the round sticks and do the chamfering process for one end and threading process the other end at the same time.

Video

Wood Round Stick Broom Handle Threading Machine

Specification

Model	BD260
Max Diameter of Thread Pitch	28mm
Min Diameter Of Thread Pitch	20mm
Processing Length	1150-1300mm
Max Thread Pitch	6mm
Min Screw Pitch	3mm
Feeding Motor Power	0.37kw
Tooth-Discharging Motor Power	0.75kw
Rounding And Sharping Motor Power	0.55kw*2
Working Speed	30 Pieces/Minute
Dimension	220012001100mm
Weight	1000kg
