Wooden Toothpick Production Line

The total set of wood toothpick making machines includes
Wood lamination machine---Wood filament machine---wood filament set-size machine---Toothpick set-size machine---Toothpick polisher---Toothpick ordering machine---Toothpick sharpener---Multipurpose sharpener.
 Totally 8 units of machines, used for making toothpicks from wood.
wooden-toothpick-making-machine
wood-toothpick-making-line
Introduction
Video
Specification
Products
inquiry
Introduction
Wood Toothpick Production Line

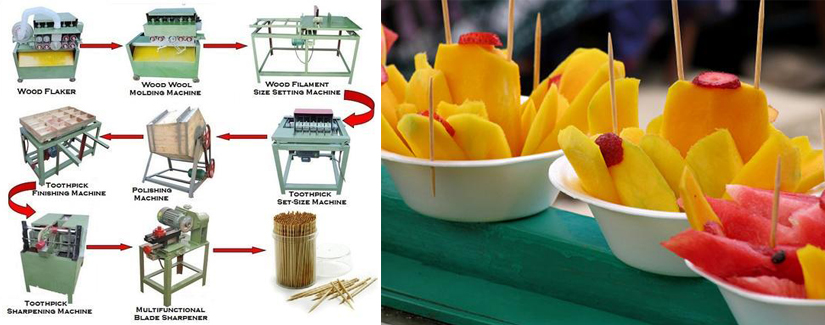

The production process of toothpick making machine

Raw material(wood) - shard - into silk - (poor color appropriate to bleaching, drying) length cut - polishing - remove the defect to sign - cutting cutting flower, remove the defect sign, packing, warehousing (factory)

Advantages of wooden toothpick production line:

This set of wood toothpick making machines need 4-6 workers to operate.
The size of  the finished toothpicks can be  with diameter 2.2 mm and the length 65mm, the minimun capacity is 500000 pcs/8 hours.
The capacity can be customized, if to replace the #7 machine with sharpening machine, the output can be 600000 pieces/ 8 hours.Increase the sharpener machine 4 units, the production can be 3 million/8hours.
Need to preprocess the wood into 140/105/70/30cm length,6cm width and 3.5cm thickness firstly.


Machine Application of toothpick making machine:

This production line could make bamboo and wooden toothpick (one pointed and two pointed toothpick), BBQ sticks(skewers), incense sticks, match sticks and so on.Different diameters,different length,almost all.

Video
Wooden Toothpick Production Line

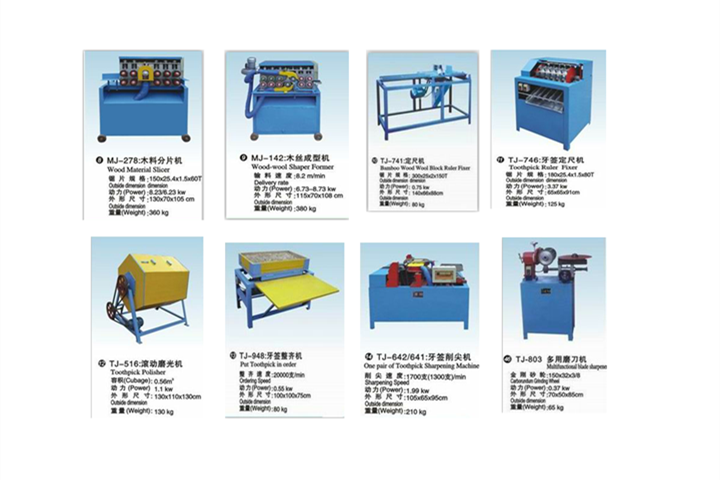

Specification

No.

Name

Model

Qty.

set

Power

(kw)

Weight

(kg)

1

Wood Material Slicer

BD-278

1

8.23

410

2

Wood-wool Shape Former

BD-142

1

6.73

410

3

Wood-wool Ruler Fixer

BD-741

1

0.75

 150

4

Toothpick Ruler Fixer

BD-746

1

3.37

 160

5

Toothpick Polishing Machine

BD-516

1

1.5

210

6

Toothpick Ordering Machine

BD-948

1

0.55

120

7

Toothpick Sharpen Machine

BD-843

1

2.87

400

8

Multifunctional Blade Sharpener

BD-802

1

0.37

90

Total





24.37

1,950
