Automatic Wooden Dowel Making Machine

This wooden dowel making machine: mainly used for processing the elongated wood and log core into wood dowel according to the requirements

Introduction

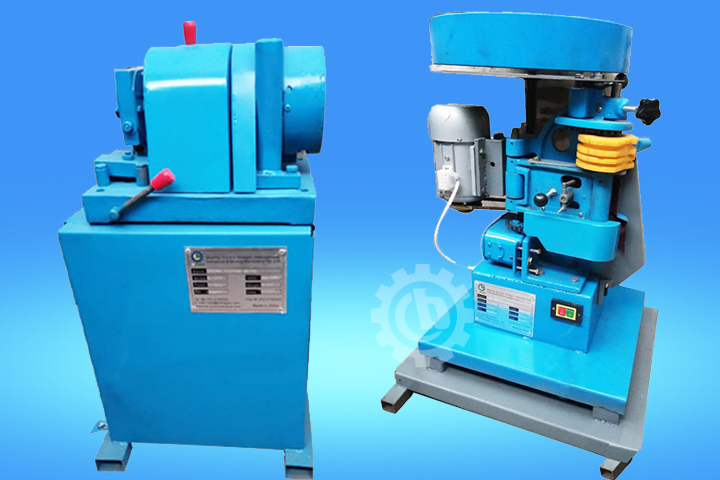

Wood Dowel Making Line

Part 1 -Wooden Dowel Milling Machine

Part 2 -Wooden Dowel Cutting Machine

1).This wooden dowel milling machine used for making round rod into dowel shape.
2).The automatic cutting machine used for cutting the wooden dowel.

Video

Wooden Dowel Making Line

Specification

Part 1 -Wooden Dowel Milling Machine

Model	BJ-075
Diameter	6mm,8mm,10mm,12mm
Speed	2.5m/min
Spindle rotation	3250r/min
Power	0.75Kw
Dimension	400300750mm
Weight	100kg

Part 2 -Wooden Dowel Cutting Machine

Model	BJ-055
Truncating diameter	6mm,8mm,10mm,12mm
Truncating length	30-80mm
Truncating capacity	31pieces/min
Power	0.55Kw
Dimension	600480950mm
Weight	100kg
