Coil Nail Making Machine

This nail coiling machine is used to make the final coiled nails, it is high efficiency and fully automatic,it is a widely using machine in nail production industry.
coil-nail-machine
Introduction
Video
Feature
Specification
inquiry
Introduction
Nnail Coiling Machine Introduction

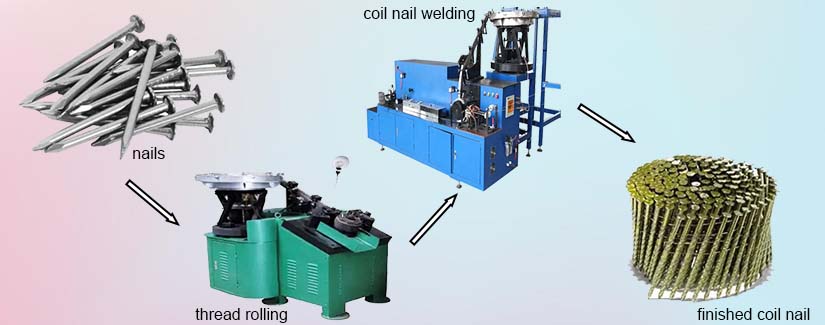

Coil nail making process:

wire rod ----- Nail making and polishing ----- nail threading ----- coil nail welding ----- finished coil nails

1. Common Wire Nail making machines:This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.

2. Nail polishing machine: This machine is auxiliary equipment of nail making machine. When the nails have been made by the nail making machine, it will be not very bright. The user can use this machine to polish the nails to let it brighter, smoother and anti-rust.

3. Nail threading machine: This machine is equipped with professional molds, can produce various kinds of shaped nails.It is mainly used to produce screw nail, spiral nail and other new type of nails.

4. Coil nail welding machine: The coil nail welding machine is automatic welding equipment. Put the nails to vibrating disk, the nails will get in welding wheel by feeding tracks in order, weld by two coopered wire, and then through oiled to anti-rusting automatically, drying and counting device, roll it into a dish, cutting off according to the setting quantity of per dish, finally fixed the dish by rubber ring and packing.

Video
Nail Coiling Machine
Feature
01

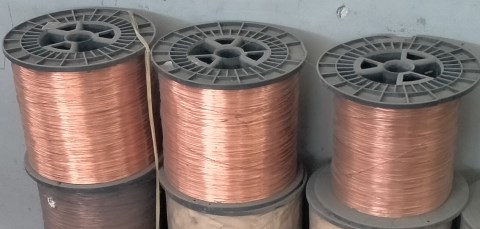

The welding wire of the nail coiling machine is copper.
02

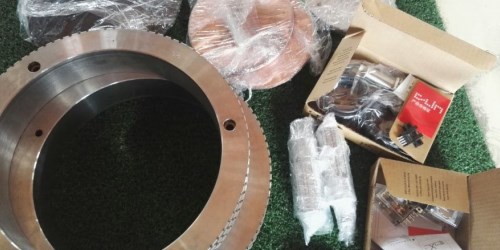

Different kinds of pare parts available,can send with machine together.
03

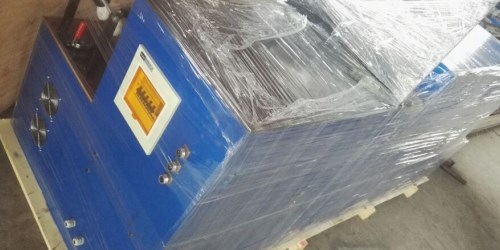

Before packing into wooden package, wrapped with plastic film.
04

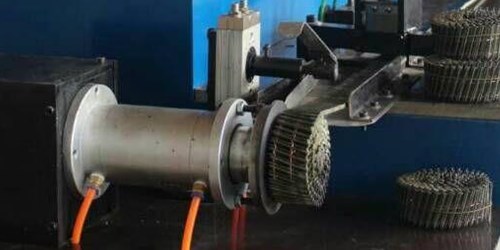

Automatic cut off the one bundle in the end of the machine.
05

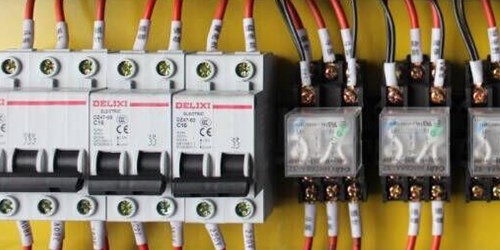

Brand electrical parts used in machine, and good wire connection.
06

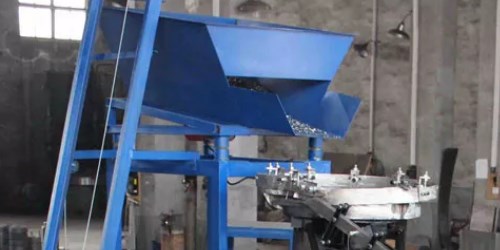

Can equip with automatic feeding bucket elevator to feed the wires.
Specification
Model BNC
Output 2300-2800 pcs/min
Processing Nail Length 25-100mm
Power 15KW
Main Machine Dimension 2700*900*1200mm
Voltage 380V/50HZ/3 phase, can customize
