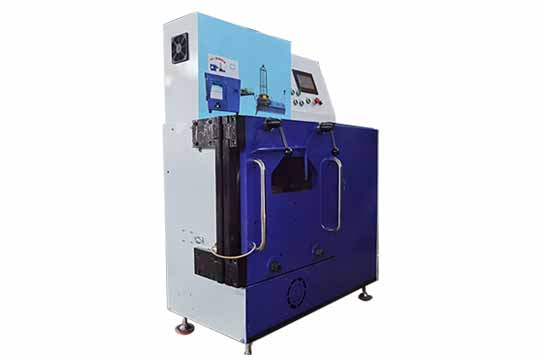

Automatic High Speed Wire Nail Making Machine

This GDJ series high speed nail making machine we called it as super high speed, it is because one set High Speed Nail Making Machine equals to 8 - 10 set common nail making machine producing capacity.
high-speed-wire-nail-making-machine
Send Inquiry
Send Email
Introduction
Video
Feature
Specification
inquiry
Introduction
High Speed Nail Making Machine Introduction

The GDJ model is specially designed for playing high-quality playing card nails (D-shaped nails, partial cap nails, small cap roll nails), so that every playing card nail is a high-quality product (qualified product)! Completely solve the defects of high scrap rate and slow speed of playing card nails in traditional nail making machines! Thereby reducing the redundant cost of labor and site, greatly reducing your production cost, and receiving more high-margin orders with high-quality requirements at home and abroad.

All the bosses and friends who have made nails, your good news is coming. GDJ is the third generation model launched by our company, which is specially used for playing card nails (the length of nails can be: 45-88). This nail-making machine It is a high-speed nail making machine controlled by computer numerical control. It can produce 1500-2000 nails in one minute. It can make nails with a length of 30-80 mm and all models with a diameter of 2.0-3.4. Just adjust the die plate and the nail cap. The nail tip is formed at one time, the appearance of the nails produced is neat and beautiful, and the quality of the nails produced by the current test results are unanimously praised by friends at home and abroad!
Video
High Speed Nail Making Machine
Feature
01

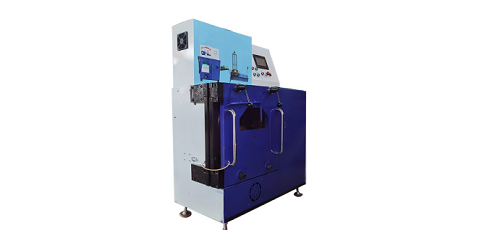

Overall appearance of the machine
02

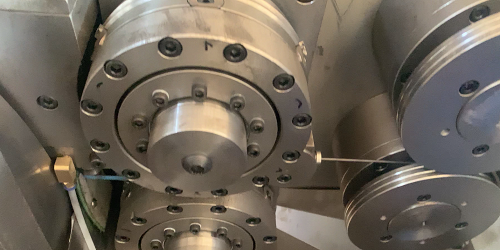

The inside of the machine is easy to open to see the internal structure
03

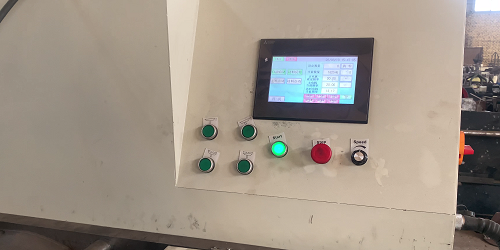

Machine operation is carried out through the PLC control panel
Send Inquiry
Send Email
Specification

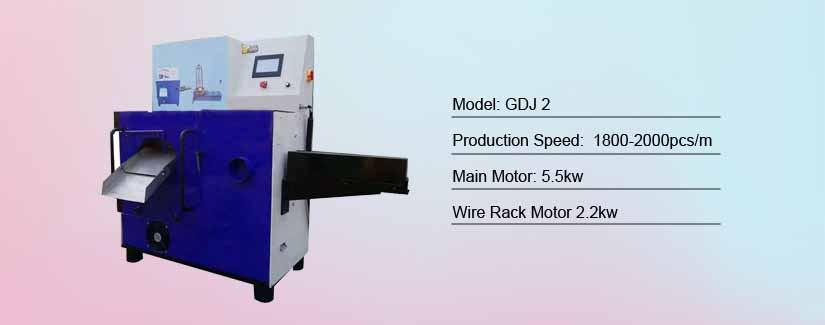

GDJ-2 model,
per minute 1800-2000pcs



 GDJ-3 model，
per minute 1500-1700pcs



 GDJ-4 model，
per minute1000-1250pcs



Main motor: 5.5kw
Wire rack motor: 2.2kw

 Main motor: 5.5kw
Wire rack motor: 2.2kw		 Main motor: 7.5kw
Wire rack motor: 2.2kw
Diameter Length Kg/h Diameter Llength Kg/h Diameter Length Kg/h
2.0 32 88 2.1 50 148 2.8 60 223
2.0 40 109 2.1 55 162 2.8 75 277
2.1 32 108 2.3 50 178 3.0 70 298
2.1 40 128 2.3 60 213 3.0 80 339
2.1 45 150 2.5 50 211 3.0 88 372
2.5 32 160 2.5 60 253 3.7 75 486
2.5 40 191 2.5 75 314 3.7 90 581
2.5 45 210 2.8 50 264 3.7 100 645
