Vision selecting function which can select the stick’s surfaces which has Chromatic Aberration and Contaminate.

Wheel Type Ice Cream Stick Vision Selecting Machine

The item that this kind of wheel type ice cream stick vision selecting machine can select:

Sticks Two End Narrow, Two Sides Thin, Lateral Bending, Vertical, bend, Short, Chromatic Aberration, Contaminate.

Introduction

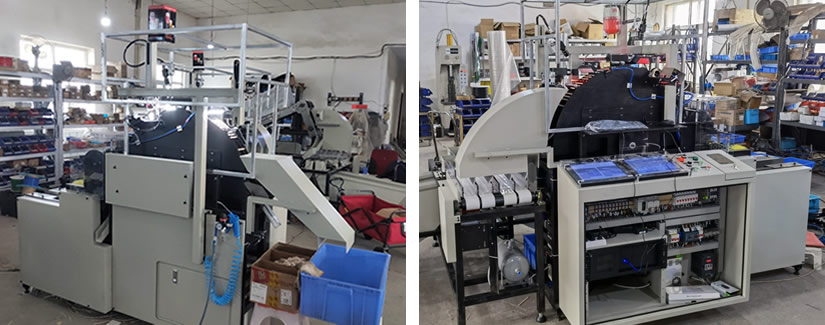

Wheel Type Ice Cream Stick Vision Selecting Machine

Wheel type ice cream stick vision selecting machine is the very important and essential machine for a complete line especially for the mature manufacturer for the ice cream sticks. It has the function to check the quality of the ice cream sticks, such as the items: Sticks Two End Narrow, Two Sides Thin, Lateral Bending, Vertical, bend, Short, Chromatic Aberration, Contaminate.

Video

Wheel Type Ice Cream Stick Vision Selecting Machine

Feature

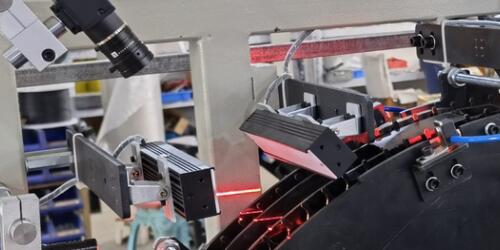

Machine with LED light for better selecting by the cameras.

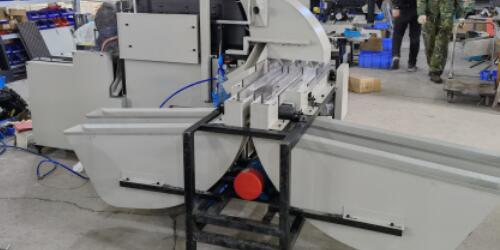

Option choice of machine to separate the sticks into 4 grades.

The selected bad sticks of contaminate and chromatic aberration .

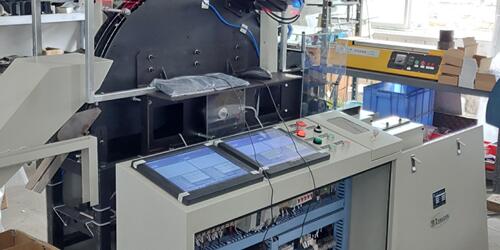

Vision type selecting machine control panels and touch screen.

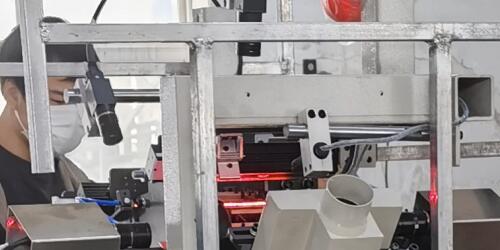

Vision selecting machine installed with 4 cameras of 1.3 million pixel.

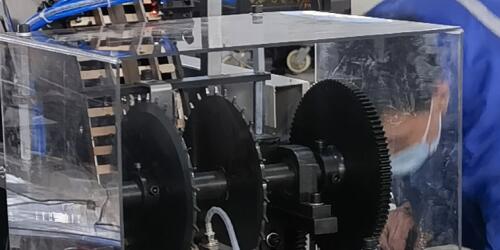

The machine moving chain part is equipped with saftety covers.

Send Inquiry

Send Email

Specification

Model	BVJX
Output	50,000 pcs / hour
Dimension	21008001900mm
Packing Size	22809202080mm
Power	0.55 kw / 380V, 3 Phase
Net Weight	400Kg
Gross Weight	500kg
Checking Item	Two End Narrow, Two Sides Thin, Lateral Bending, Vertical bend, Short, Chromatic Aberration, Contaminate
