Magnum Arranging Machine

This magnum arranging machine is a high efficiency machine for making the disorder magnum sticks into good order, greatly reduce the labor cost.

Introduction

Magnum Arranging Machine

During the magnum making process, you shall polishing & drying the stick after carved cutting machine. After drying & polishing process, the ice-cream stick and magnum is not in good order, It is in a mess. So, you need to arrange all the magnums into a good order and then packed by cartons manually. Ice Cream Sticks & magnums Order Arranging Machine can realized this function.

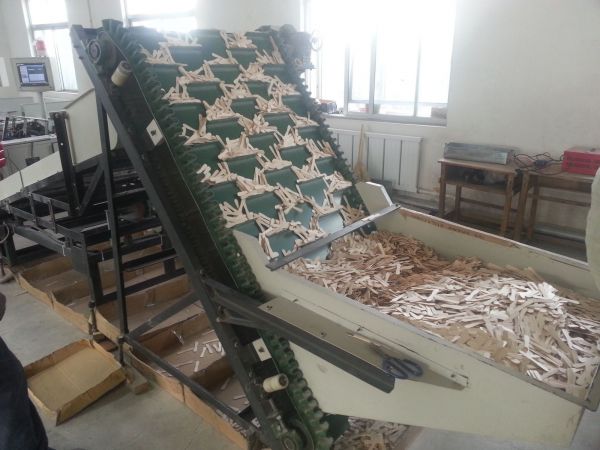

This machine use the conveyor belt to transfer the bulk material with a corrugated tape drive into the slot house, it didn’t need the people to arrange the material by hand, this greatly save labor and it is very efficient.

Video

Magnum Arranging Machine

Feature

Structure upgraded, better performance, with additional different length stick belt.

Big feeding hopper, can put into several bags one time, worker can do other job.

Uploading green belt, can easily take up the sticks up and go to next procedure.

Machine with individual control cabinet, easy for worker to operate the machine.

Specifal structure, can help to make the disorder sticks fall down to following lanes.

Machine delivery will be dismantled to save the delivery cost, with plastic film inside.

Send Inquiry

Send Email

Specifiction

Model	BSL-2
Output	200,000 pcs/hour
Machine Dimension	250016001750mm
Net Weight	430kg
Packing Size	220016001140mm and 153012301800mm
Gross Weight	680kg
Voltage	380V,50HZ, three phases
Power	1.2 Kw
