Ice Cream Sticks Rotary Cutting Machine

This is ice cream sticks rotary cutting machine, also called the wood peeling machine, it is a necessary machine if you start from wood logs, firstly cut the wood logs into 480mm, and then boiling peeling skin, and put on machine for cut out the wood veneer, has two configuration, low loise type and CNC operation type.
Double Segment Rotary Cutting Machine
wooden-rotary-cutting-machine
Introduction
Video
Feature
Specifiction
Products
inquiry
Introduction

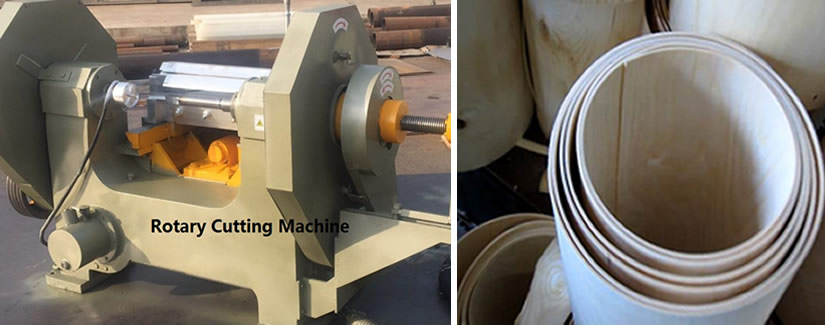

Ice Cream Sticks Rotary Cutting Machine

With the development of science and technology, digital servo control technology is also applied to the production of rotary cutting machines. The emergence of CNC rotary cutting machines not only improves the quality and precision of the production of veneers, but also improves the production efficiency and the degree of automation of the whole machine. The minimum peeling diameter can reach 45mm, and the maximum peeling diameter can reach 800mm.


Video
Ice Cream Sticks Rotary Cutting Machine
Feature
01

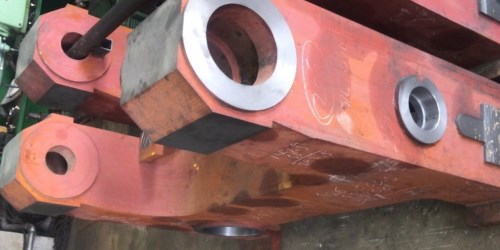

The main frame is one time cast steel shaping, good quality.
02
Adopt automatic lubricating oil pump, easy for operation.
03
Very smooth rotary cutting veneer surface, high rpm cutting.
04
Uniform thickness by our rotary cutting machine, PLC control.
05
The rear gear been improved, very convenient to replace the gear.
06
Improvement in oil tank,easy to observe the remaining oil,not leak oil.
Specifiction


Model

BXQJ

Rotary-cutting common thickness

1 – 3.50mm

Processing Length

<520mm

Clamping Diameter

<800mm

Overall Dimension

2500*2400*1300mm

Power

20.2KW

Machine Weight

2300kg

Wheel Gear Material

45# Cast Steel

Nut and Turbine

Tin Bronze 663#
