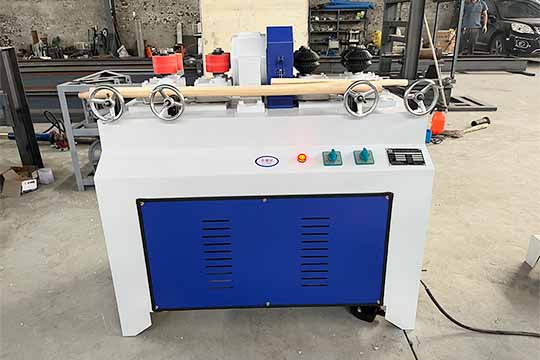

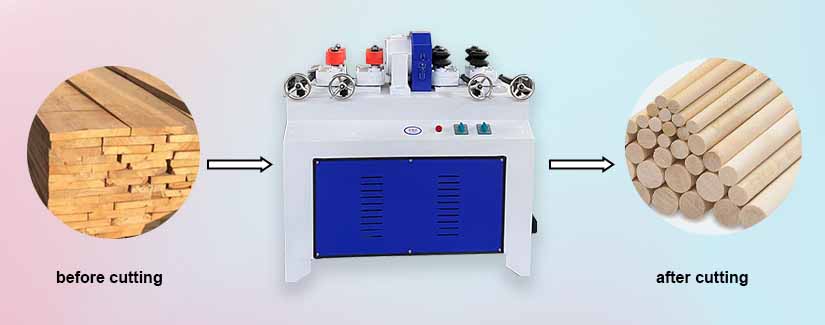

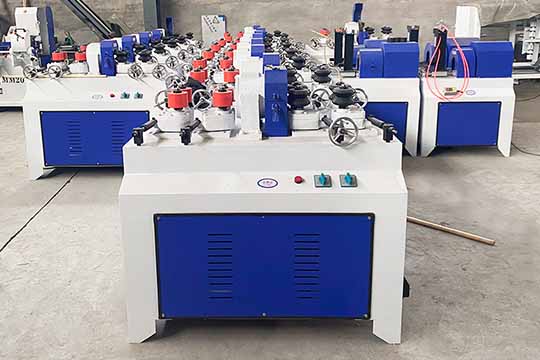

Wood Round Forming & Sanding Machine

  • Main Motor Power: 3KW
  • Feeding Motor Power: 0.55KW
  • Spindle Velocity: 4000r/min
  • Feeding Speed: 5m/min
  • Cutting Diameter: 10-50mm

We're here to help:  Easy ways to get the answers you need.

Share With:
  • Specifications
   This machine is mainly composed of support base, cutting and peeling device, feeding roller, discharging roll, speed adjusting device.

  1. Support base: mainly used for supporting cutting and peeling device, cutting and peeling device, feed roller, discharge roller, motor and speed adjusting device.

  2. Cutting and peeling: composed of main shaft, bearing, knife plate, blade, centering sleeve. Accordance of knife plate, blade and centering sleeve determines accuracy of processing.

  3. Feed-discharge roller: composed of feed roller, discharge roller, discharge gear box, gear, chain, function to feed work piece and draw out finished product smoothly.

  4. Knife plate: adopts removable adjustable structure, diameter in within model scope can be adjusted according to production requirements, but finished product diameter is 0.2mm more than required. So it is commonly 0.1-0.15 mm more that final product. After sanding, final product reach required diameter.

Main Parameter:

Main Motor Power

3KW

Feeding Motor Power

0.55KW

Spindle Velocity

4000r/min

Feeding Speed

5m/min

Cutting Diameter

10-50mm

Max. Cutting Quantity

2mm

Min. Working Length

400mm

Weight

250Kg

Voltage

380V or Customization

Power

2.2 Kw


Working Video of Wood Round Forming & Sanding Machine
