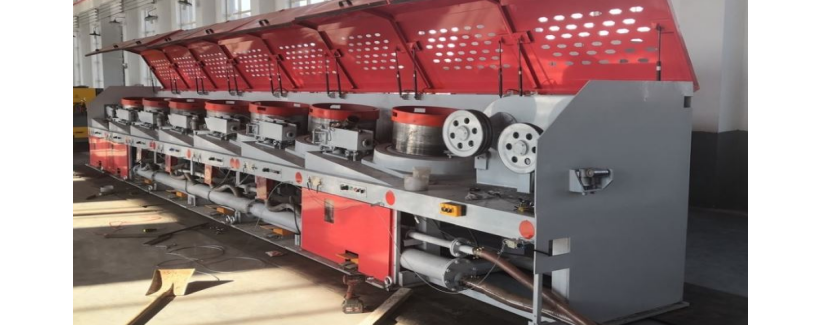

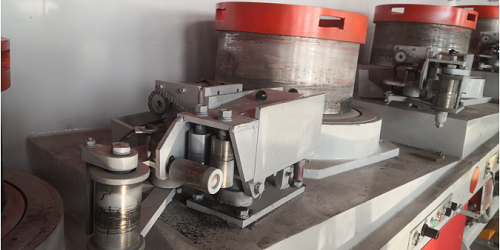

Straight line type wire drawing machine

  • Capstan diameter: 900mm
  • Max. inlet diameter: ø14-8 mm
  • Speed of drawing: 300 m/min

We're here to help:  Easy ways to get the answers you need.

Share With:
  • Specifications

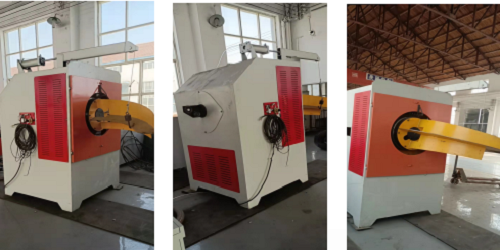

With the introduction, assimilation and absorption of the foreign advanced technology and its essence, the straight line type wire drawing machine developed & produced by our factory is kind of wire drawing equipment suitable for drawing the steel wires with higher tensile strength & performance. This kind of machine fits the production of type cords, bead wires, wire for steel ropes, stainless steel wires and CO2 gas shield welding wires, etc. The capstan diameter range of such series varies from 350-900mm, for which the Max. inlet wire size is up to 14mm and the Min. is down to 0.7mm.

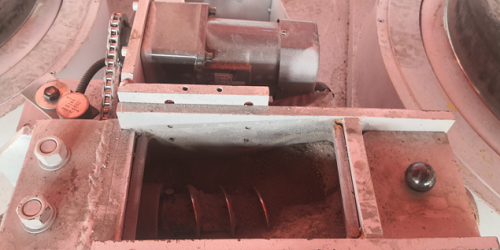

The machine features the functions of Human Computer Interaction (HMI), motor overheat protection, abnormal water pressure protection, length, set length alarm and breakdown display, etc.; The plane double enveloping wormgear / worm and narrow V-shaped combined belts with low noise running are applied to the transmission structure; The capstan cooling employs the integration of narrow seam water cooling with air blowing cooling, to bring on a better cooling effect. The speed adjustment using AC Variable Frequency Inverters and PLC of SIEMENS make is a kind of high-end selection for electrical components, as is characteristic of higher efficiency, easier operation, high automation and wider technical range.

Main Specifications

Item

Unit

LZ9/900

LZ9/800

LZ9/700

LZ10/560

LZ10/400

Capstan diameter

mm

900

800

700

560

400

Passes of drawing

pass

9

9

9

10

10

Max. inlet diameter

mm

ø14-8

ø10-8

ø8-6.5

ø6.5-5.5

ø2.8-2.0

Min. inlet diameter

mm

ø5-3

ø5-3

ø3-2.5

ø2-1.8

ø1.0-0.8

Speed of drawing

m/min

300

3600

480

720

840

Inlet wire tensile strength

Mpa

<1300

1300

1300

1300

1300

Total compressibility

%

87.24-85.94

84.00-85.94

85.94-85.21

90.53-89.29

87.24-84.00

Average compressibility

%

20.45-19.58

18.42-19.58

19.58-19.13

21.00-20.02

18.61-16.74

Motor power

kw

110-90

90-55

75-55

45-22

15-7.5
