Automatic Concrete Nails Making Machine

Concrete nails making machine and wire nail making machine is same machine,but the difference is the heat treatment equipment and galvanize equipment.
steel-nail-making-machine
concrete-nails-making-machines
Introduction
Video
Feature
Specification
inquiry
Introduction

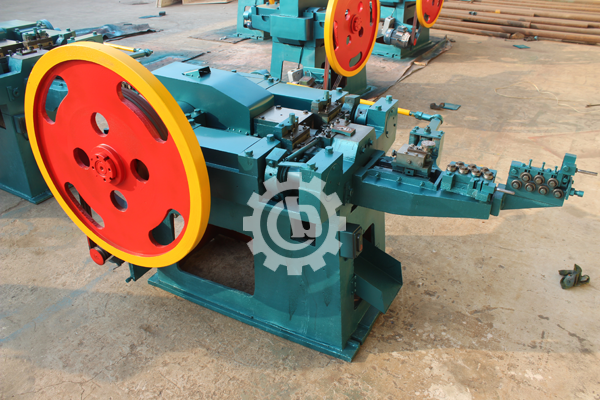

Concrete Nail Making Machine

Concrete nail making process:

Q195 low carbon steel wire rod ----- wire drawing ----- annealing ----- nail making ----- quenching treatment ------ finished nail
Concrete nail making machine can make concrete nails, common nails, roofing nails, coil nails, etc., many type nails. This concrete nail making machine produces nail with nail length 9mm to 320mm, nail diameter 0.9mm to 10mm.

Concrete nail making machine advantage:

1. This concrete nail making machine use vacuumed cast steel body, so the machine structure will not deformation under high and low temperature.
2. Low noise, long lifespan, stable and good performance.

Video
Wire Concrete Nails Making Machine
Feature
01
After painting, the machine can make 1-6inches nails
02
Automatic oil pump lubrating system
03

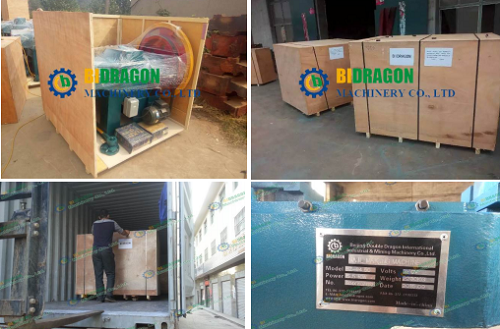

Finished machine Export standard packaging in plywood
Specification
Technical Items Unit Z94-6.5C Z94-5C Z94-4C Z94-3C Z94-2C Z94-1C
Diameter of nail Max mm 6.5 5.5 4.5 3.4 2.8 1.6
Diameter of nail Min mm 4.5 3.7 2.8 1.8 1.2 0.9
Length of nail Max mm 200 150 100 75 50 25
Length of nail Min mm 100 80 50 30 16 9
Designed output pcs/min 160 200 280 320 350 450
Motor power kw 11 5.5 4 3 3 1.5
Overall size mm 3200×2200×2200 2380×1580×1660 2120×1540×1590 1800×1260×1460 1645×1215×1345 1440×1040×1270
Weight kg 2800 2200 1900 1100 750 450

Note:    1 inch = 25.4 mm
